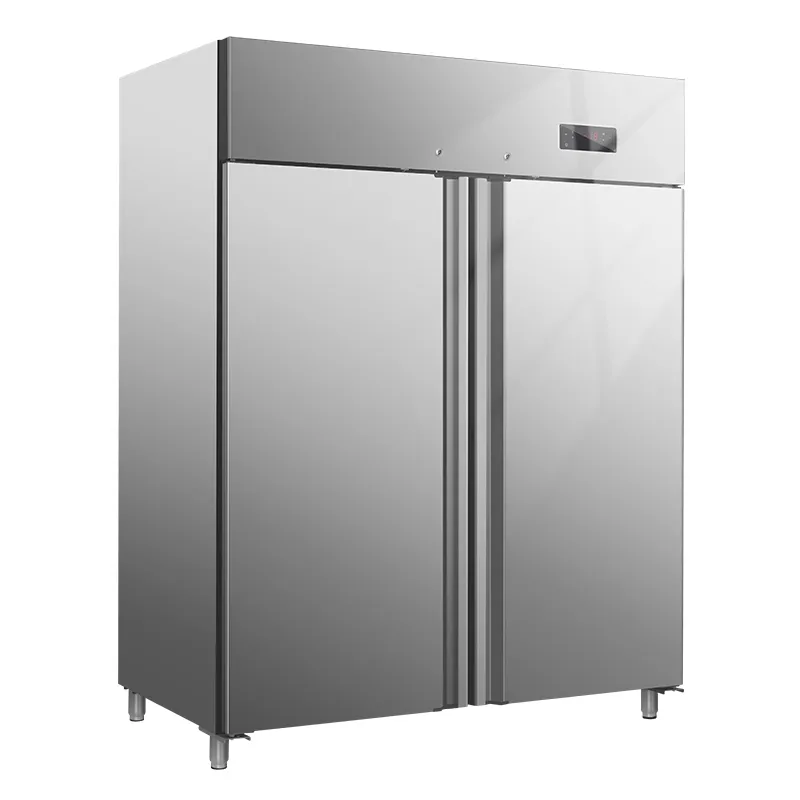

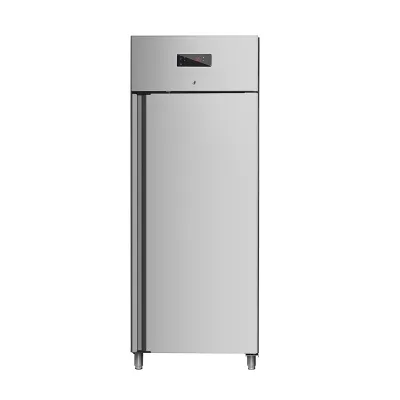

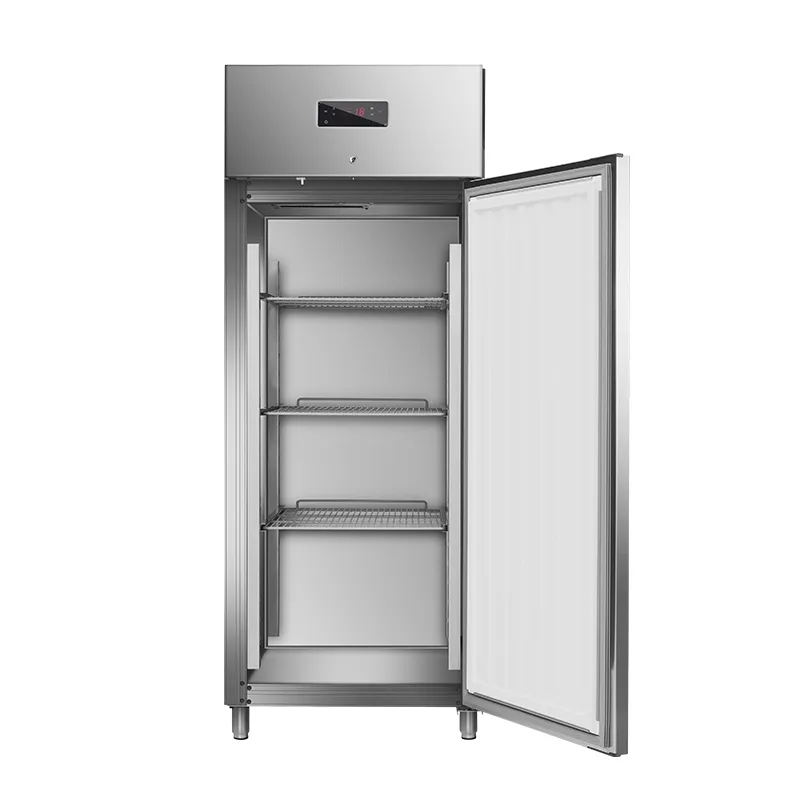

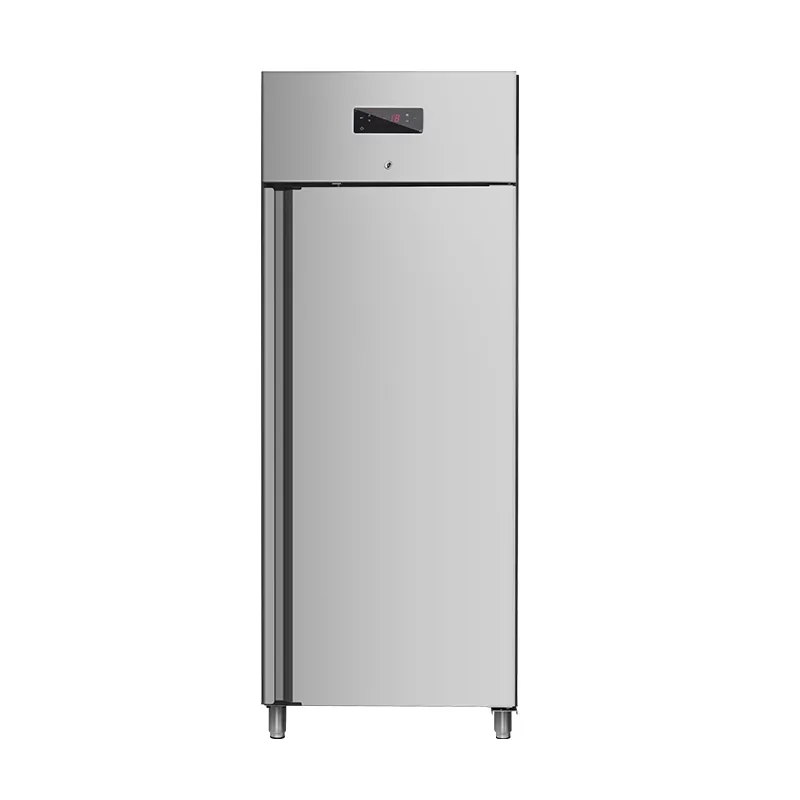

Commercial Reach-In Refrigerator (Vertical Freezer)
The European style series commercial reach-in refrigerator provides large-capacity cold storage for professional kitchens and retail environments. With spacious storage space and precise temperature control, meeting daily stocking needs and food safety requirements becomes much easier.
This vertical refrigerator accommodates high-volume storage needs across foodservice and retail operations with a capacity ranging from 540L to 1344L. It features frost-free air-cooling technology and uses environmentally friendly R290 refrigerant for stable and energy-efficient performance. The adjustable temperature range of 0 to 8°C for refrigeration and -18 to -22°C for freezing allows flexible configuration based on storage demands.
Widely used in commercial kitchens of hotel, fresh food supermarkets, bakery workshops, and central kitchens. The vertical freezer provides reliable low-temperature storage for meat, fruits and vegetables, and semi-prepared ingredients. It offers structured management and maintains freshness of a vast amount of ingredients used daily in busy commercial kitchens.

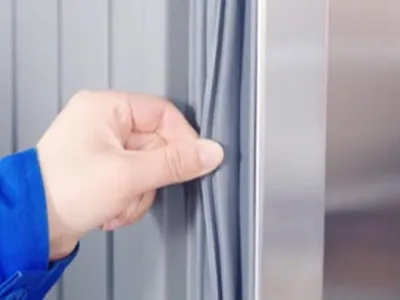

TEP door seal
Resistant to low temperatures, ensures no air leakage, easily removable for cleaning

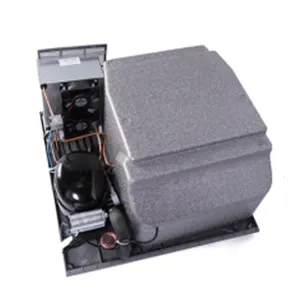

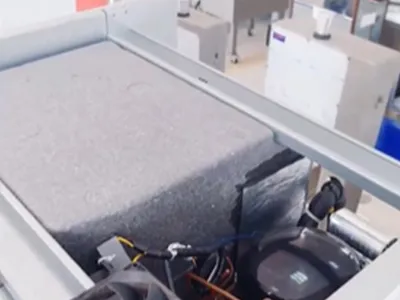

Integrated refrigerator unit
Efficient operation and easy maintenance

Computer-controlled precise temperature + Wi-Fi connectivity
Digital screen for portable operation and clear status display

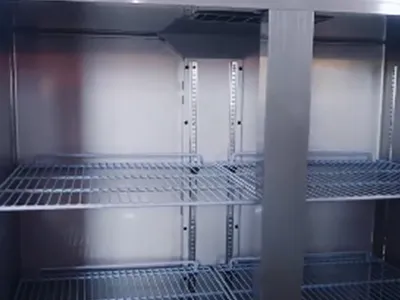

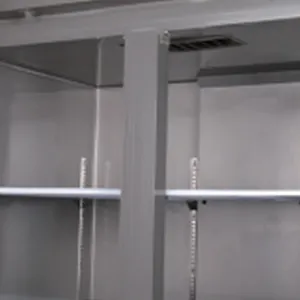

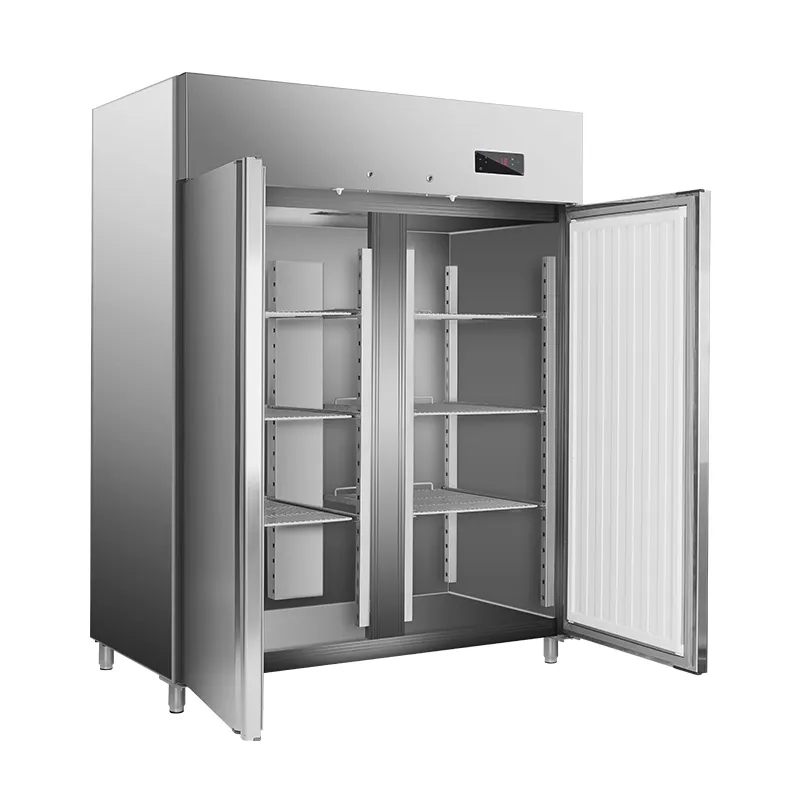

Space-saving interior
No internal evaporator unit occupying the cabinet, more room available for storage
| Model | ||||
| Classification | Refrigerator | Freezer | Refrigerator | Freezer |
| Product Image | ![]() | ![]() | ![]() | ![]() |
| Dimensions (W×D×H) (mm) | 680×710×2010mm | 680×710×2010mm | 1340×710×2010mm | 1340×710×2010mm |
| Packing Size (W×D×H) (mm) | 705×735×2060mm | 705×735×2060mm | 1365×735×2060mm | 1365×735×2060mm |
| Capacity | 540L | 540L | 1002L | 1002L |
| Power Supply | 230V/55Hz/320W | 230V/55Hz/380W | 230V/55Hz/380W | 230V/55Hz/550W |
| Temperature | 0℃~+8℃ | -18℃~ -22℃ | 0℃~+8℃ | -18℃~ -22℃ |
| Refrigerant | R290 | R290 | R290 | R290 |
| Compressor | Cubigel/Donper | Cubigel/Donper | Cubigel/Donper | Cubigel/Donper |
| Model | ||||
| Classification | Refrigerator | Freezer | Refrigerator | Freezer |
| Product Image | ![]() | ![]() | ![]() | ![]() |
| Dimensions (W×D×H) (mm) | 680×810×2010mm | 680×810×2010mm | 1340×810×2010mm | 1340×810×2010mm |
| Packing Size (W×D×H) (mm) | 705×835×2060mm | 705×835×2060mm | 1365×835×2060mm | 1365×835×2060mm |
| Capacity | 632L | 632L | 1172L | 1172L |
| Power Supply | 230V/55Hz/320W | 230V/55Hz/380W | 230V/55Hz/380W | 230V/55Hz/550W |
| Temperature | 0℃~+8℃ | -18℃~ -22℃ | 0℃~+8℃ | -18℃~ -22℃ |
| Refrigerant | R290 | R290 | R290 | R290 |
| Compressor | Cubigel/Donper | Cubigel/Donper | Cubigel/Donper | Cubigel/Donper |
| Model | ||||
| Classification | Refrigerator | Freezer | Refrigerator | Freezer |
| Product Image | ![]() | ![]() | ![]() | ![]() |
| Dimensions (W×D×H) (mm) | 740×830×2010mm | 740×830×2010mm | 1480×830×2010mm | 1480×830×2010mm |
| Packing Size (W×D×H) (mm) | 765×855×2060mm | 765×855×2060mm | 1505×855×2060mm | 1505×855×2060mm |
| Capacity | 710L | 710L | 1344L | 1344L |
| Power Supply | 230V/55Hz/320W | 230V/55Hz/380W | 230V/55Hz/380W | 230V/55Hz/550W |
| Temperature | 0℃~+8℃ | -18℃~ -22℃ | 0℃~+8℃ | -18℃~ -22℃ |
| Refrigerant | R290 | R290 | R290 | R290 |
| Compressor | Cubigel/Donper | Cubigel/Donper | Cubigel/Donper | Cubigel/Donper |
