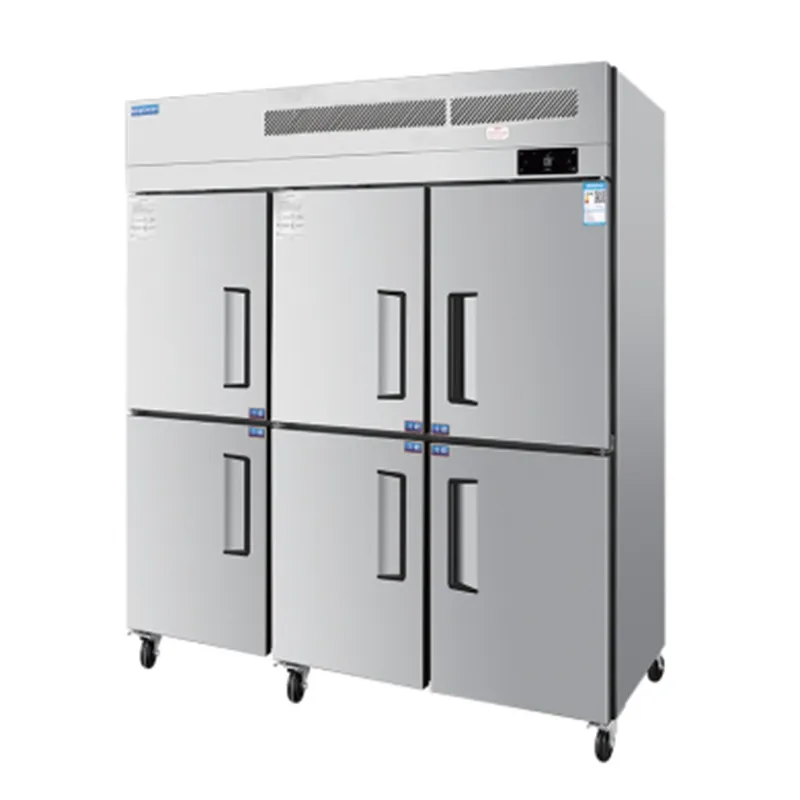

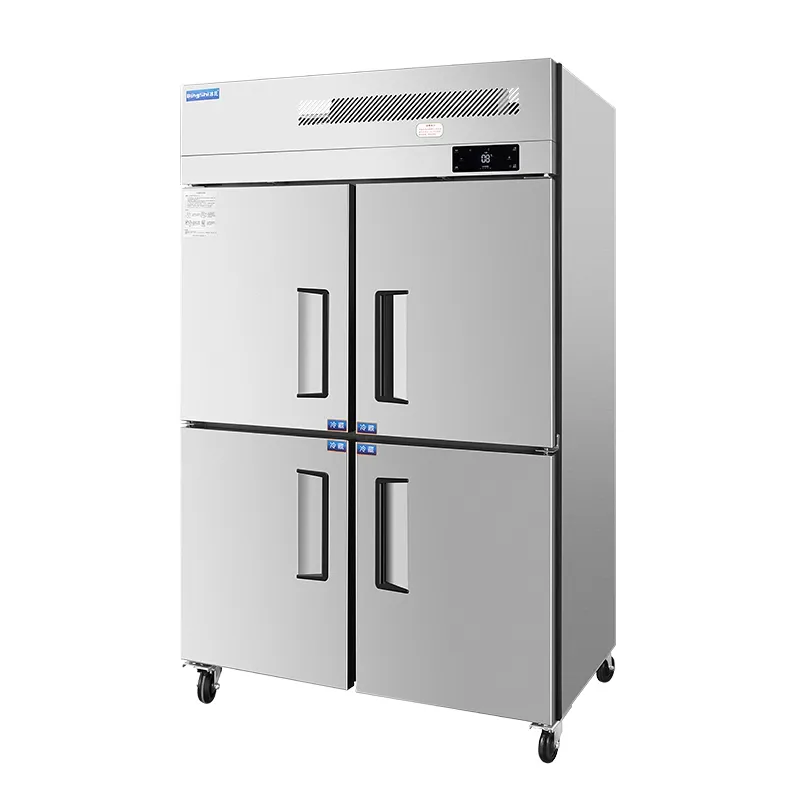

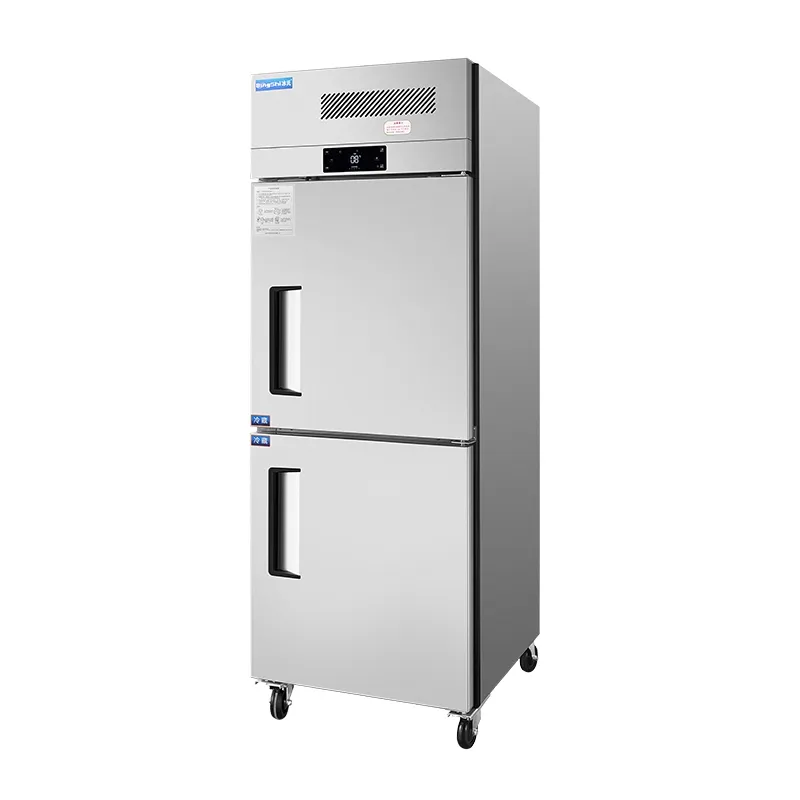

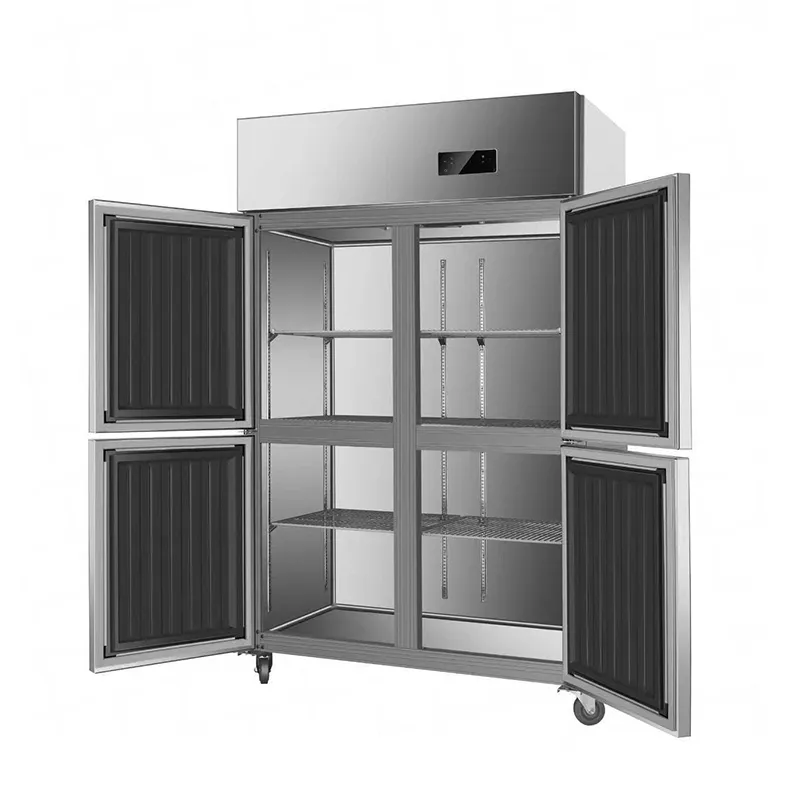

Commercial Reach-In Refrigerator (Vertical Freezer)
Asian Style 700 Series

Commercial Reach-In Refrigerator (Vertical Freezer)

The Asian style 700 series reach-in refrigerator provides a reliable cooling performance and generous capacity for kitchens that require storage volume and temperature consistency. Built for restaurants and retail spaces that move fast, it keeps ingredients properly chilled while making large-scale stocking easier to manage.

This vertical freezer adapts to both medium and high-volume storage demands offering a capacity range of 490L to 1350L. The frost-free air-cooling system maintains even temperature distribution, while R290 refrigerant supports efficient and environmentally responsible operation. Adjustable temperature settings of +1 to +8°C for refrigeration and -10 to -18°C for freezing give you flexibility depending on what you store.

Leave a Message
Applications

It meets the needs of large-scale hotel kitchens, fresh food supermarkets, bakery workshops, and central kitchens for storing bulk stock or managing daily prep ingredients. It keeps meat properly chilled, vegetables crisp, and semi-prepared ingredients ready for service.

  • Commercial Reach-In Refrigerator (Vertical Freezer)
  • Commercial Reach-In Refrigerator (Vertical Freezer)
  • Commercial Reach-In Refrigerator (Vertical Freezer)
Product Details

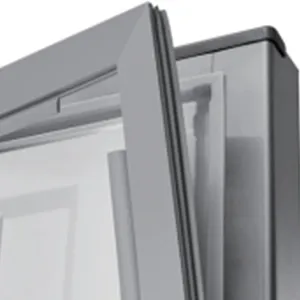

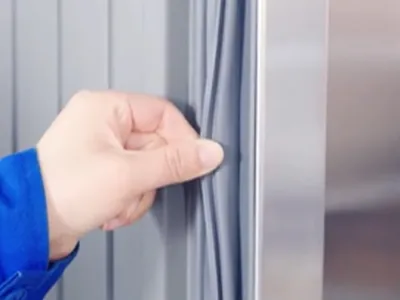

TEP door seal

TEP door seal
Resistant to low temperatures, ensures no air leakage, easily removable for cleaning

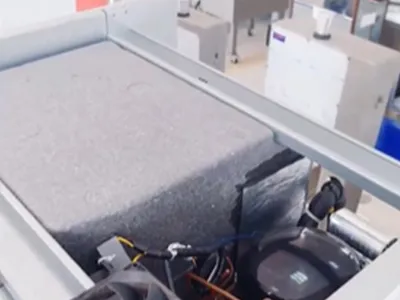

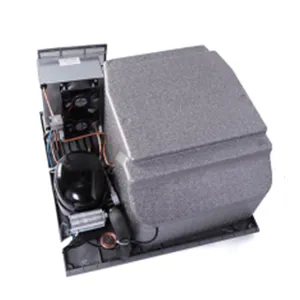

Integrated refrigerator unit

Integrated refrigerator unit
Efficient operation and easy maintenance

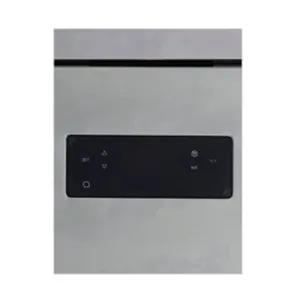

Computer-controlled precise temperature + Wi-Fi connectivity

Computer-controlled precise temperature + Wi-Fi connectivity
Digital screen for portable operation and clear status display

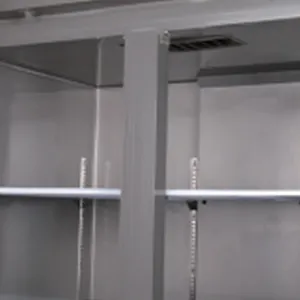

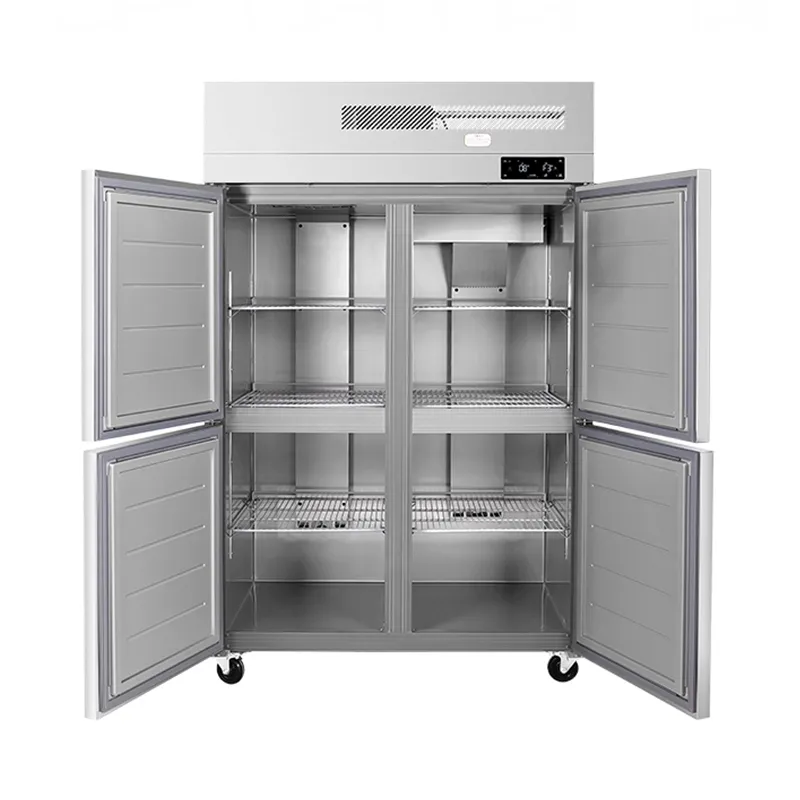

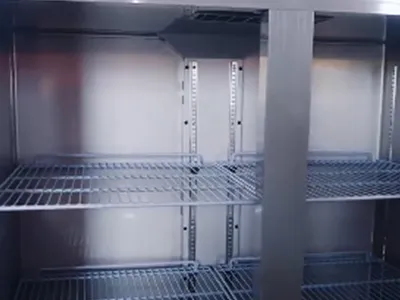

Space-saving interior

Space-saving interior
No internal evaporator unit occupying the cabinet, more room available for storage

Specifications
Model A1R6870X2  A1F6870X2 A1R1270X4 A1F1270X4 A1R1870X6 A1F1870X6
Classification Refrigerator Freezer Refrigerator Freezer Refrigerator Freezer
Product Image Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer)
Dimensions (W×D×H) (mm) 680×700×1935  680×700×1935 1200×700×1935 1200×700×1935  1800×700×1935 1800×700×1935
Packing Size (W×D×H) (mm) 705×725×1985  705×725×1985 1225×725×1985 1225×725×1985 1825×725×1985 1825×725×1985
Capacity 450L 450L 870L 870L 1350L 1350L
Power Supply 230V/55Hz/240W  230V/55Hz/450W 230V/55Hz/350W 230V/55Hz/480W 230V/55Hz/450W 230V/55Hz/600W
Temperature +1℃~+8℃ -10℃~ -18℃ +1℃~+8℃ -10℃~ -18℃ +1~+8℃ -10℃~ -18℃
Refrigerant R290 R290 R290 R290 R290 R290
Model A1D1270X4 A1T1270X4 A1D1870X6 A1T1870X6
Classification Double Temperature Zones Double Temperature Zones Double Temperature Zones Double Temperature Zones
Product Image Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer)
Dimensions (W×D×H) (mm) 1200×700×1935 1200×700×1935 1800×700×1935 1800×700×1935
Packing Size (W×D×H) (mm) 1225×725×1985 1225×725×1985 1825×725×1985 1825×725×1985
Capacity 410L×2 410L×2 410L+890L 410L+890L
Power Supply 230V/55Hz/450W 230V/55Hz/450×2W 230V/55Hz/650W 230V/55Hz/650×2W
Temperature +1℃~+8℃ -10℃~ -18℃ +1℃~+8℃ -10℃~ -18℃ +1℃~+8℃ -10℃~ -18℃ +1℃~+8℃ -10℃~ -18℃
Refrigerant R290 R290 R290 R290
Since 1996, Hualing has been an OEM/ODM manufacturer specializing in commercial kitchen and food processing equipment for global markets. Our facility integrates Swiss laser-cutting systems, Italian CNC punching machines, and HAAS machining centers to ensure precise processing and consistent manufacturing quality. Our commercial kitchen equipment complies with CE, ETL, CB, GS, and RoHS requirements.
