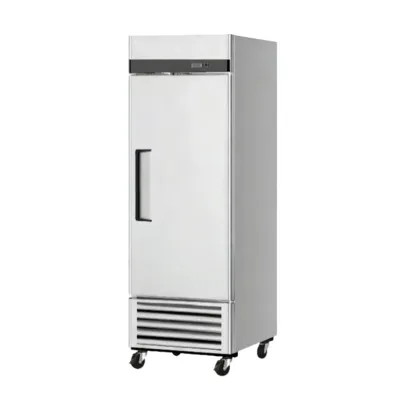

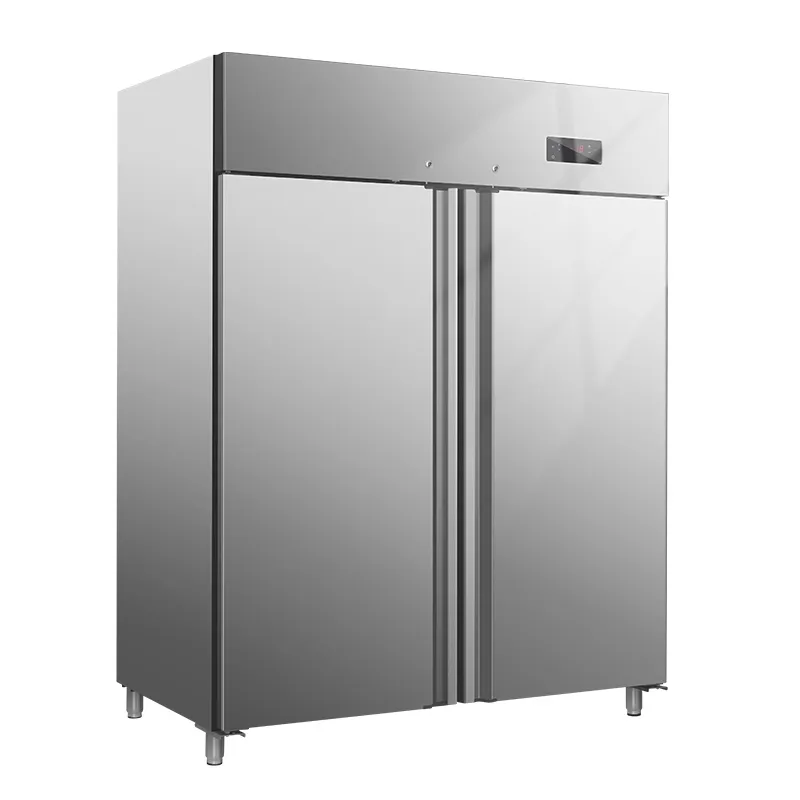

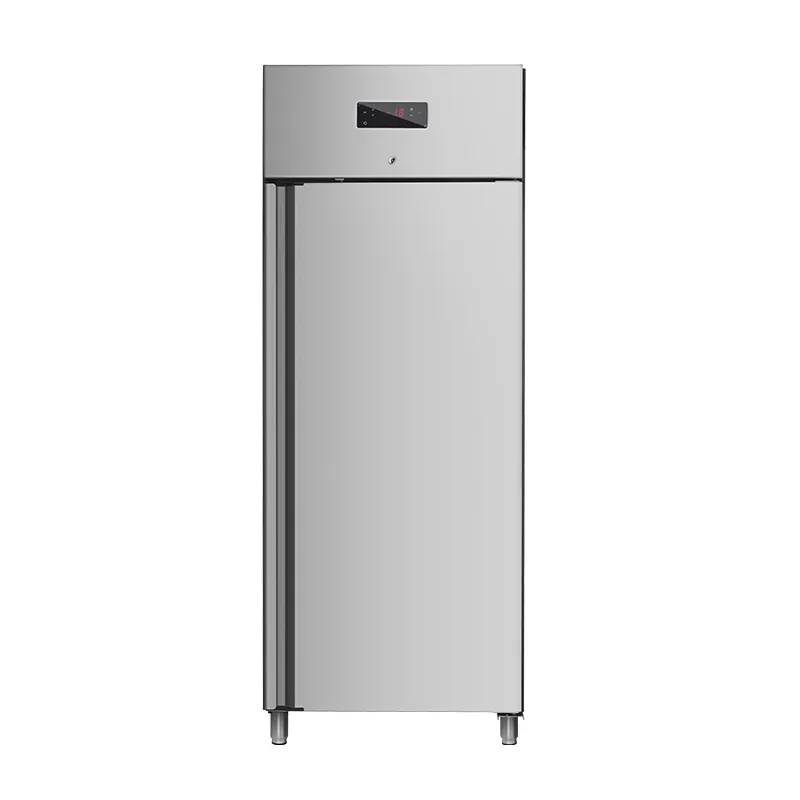

Commercial Reach-In Refrigerator (Vertical Freezer)
American Style Series

Commercial Reach-In Refrigerator (Vertical Freezer)

The American style series commercial reach-in refrigerator delivers large-capacity, temperature-controlled storage for professional kitchens and retail environments. The bigger storage space boosts functionality in the kitchen with an organized storage of bulk ingredient.

With a capacity range of 392L to 1975L, the vertical freezer accommodates everything from medium-scale kitchens to high-volume storage needs. It features frost-free air-cooling technology and uses environmentally friendly R290 refrigerant. Its efficient cooling performance is highly reliable for product preservation and compliant to food safety standards.

Leave a Message
Applications

The commercial refrigerator is suitable for hotel kitchens, fresh food supermarkets, bakery workshops, and central kitchens. It provides enough space and reliable low-temperature storage to keep meat, fruits and vegetables, and semi-prepared ingredients fresh for a smooth daily foodservice operation.

  • Commercial Reach-In Refrigerator (Vertical Freezer)
  • Commercial Reach-In Refrigerator (Vertical Freezer)
  • Commercial Reach-In Refrigerator (Vertical Freezer)
Product Details

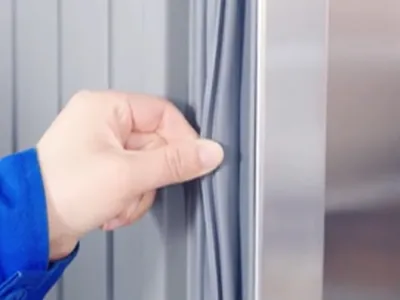

TEP door seal

TEP door seal
Resistant to low temperatures, ensures no air leakage, easily removable for cleaning

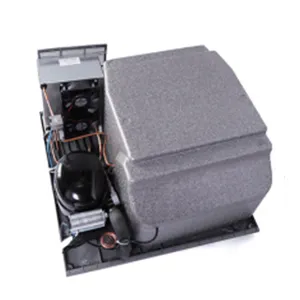

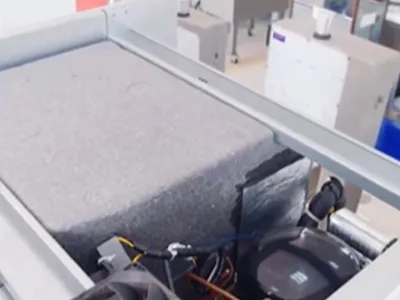

Integrated refrigerator unit

Integrated refrigerator unit
Efficient operation and easy maintenance

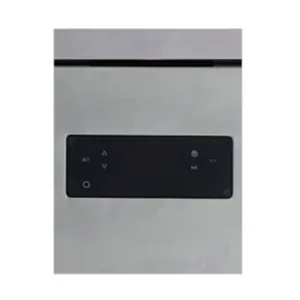

Computer-controlled precise temperature + Wi-Fi connectivity

Computer-controlled precise temperature + Wi-Fi connectivity
Digital screen for portable operation and clear status display

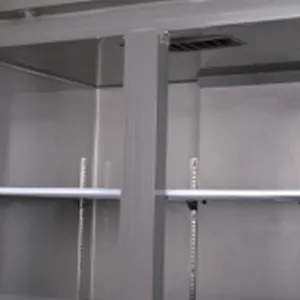

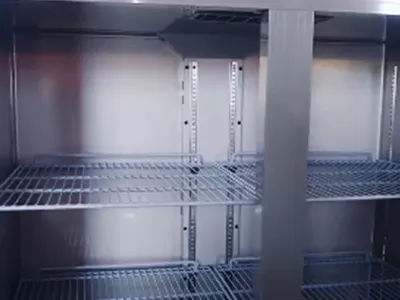

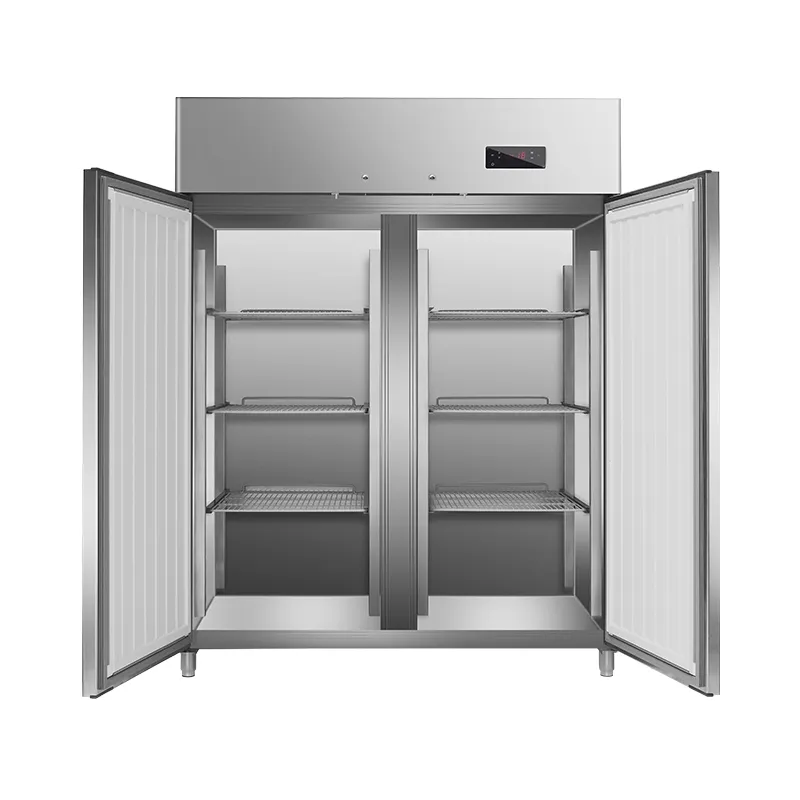

Space-saving interior

Space-saving interior
No internal evaporator unit occupying the cabinet, more room available for storage

Specifications
Model E1R6871N1  E1F6871N1 E1R1371N2 E1F1371N2
Classification Refrigerator Freezer Refrigerator Freezer
Product Image Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer)
Dimensions (W×D×H) (mm) 680×710×2010mm 680×710×2010mm 1340×710×2010mm 1340×710×2010mm
Packing Size (W×D×H) (mm) 705×735×2060mm  705×735×2060mm 1365×735×2060mm 1365×735×2060mm
Capacity 540L 540L 1002L 1002L
Power Supply 230V/55Hz/320W  230V/55Hz/380W 230V/55Hz/380W 230V/55Hz/550W
Temperature 0℃~+8℃ -18℃~ -22℃ 0℃~+8℃ -18℃~ -22℃
Refrigerant R290 R290 R290 R290
Compressor Cubigel/Donper  Cubigel/Donper  Cubigel/Donper  Cubigel/Donper
Model E1R6881N1 E1F6881N1 E1R1381N2 E1F1381N2
Classification Refrigerator Freezer Refrigerator Freezer
Product Image Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer)
Dimensions (W×D×H) (mm) 680×810×2010mm 680×810×2010mm 1340×810×2010mm 1340×810×2010mm
Packing Size (W×D×H) (mm) 705×835×2060mm 705×835×2060mm 1365×835×2060mm 1365×835×2060mm
Capacity 632L 632L 1172L 1172L
Power Supply 230V/55Hz/320W 230V/55Hz/380W 230V/55Hz/380W 230V/55Hz/550W
Temperature 0℃~+8℃ -18℃~ -22℃ 0℃~+8℃ -18℃~ -22℃
Refrigerant R290 R290 R290 R290
Compressor Cubigel/Donper  Cubigel/Donper  Cubigel/Donper  Cubigel/Donper
Model E1R7483N1 E1F7483N1 E1R1483N2 E1F1483N2
Classification Refrigerator Freezer Refrigerator Freezer
Product Image Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer) Commercial Reach-In Refrigerator (Vertical Freezer)
Dimensions (W×D×H) (mm) 740×830×2010mm 740×830×2010mm 1480×830×2010mm 1480×830×2010mm
Packing Size (W×D×H) (mm) 765×855×2060mm 765×855×2060mm 1505×855×2060mm 1505×855×2060mm
Capacity 710L 710L 1344L 1344L
Power Supply 230V/55Hz/320W 230V/55Hz/380W 230V/55Hz/380W 230V/55Hz/550W
Temperature 0℃~+8℃ -18℃~ -22℃ 0℃~+8℃ -18℃~ -22℃
Refrigerant R290 R290 R290 R290
Compressor Cubigel/Donper  Cubigel/Donper  Cubigel/Donper  Cubigel/Donper
Since 1996, Hualing has been an OEM/ODM manufacturer specializing in commercial kitchen and food processing equipment for global markets. Our facility integrates Swiss laser-cutting systems, Italian CNC punching machines, and HAAS machining centers to ensure precise processing and consistent manufacturing quality. Our commercial kitchen equipment complies with CE, ETL, CB, GS, and RoHS requirements.
