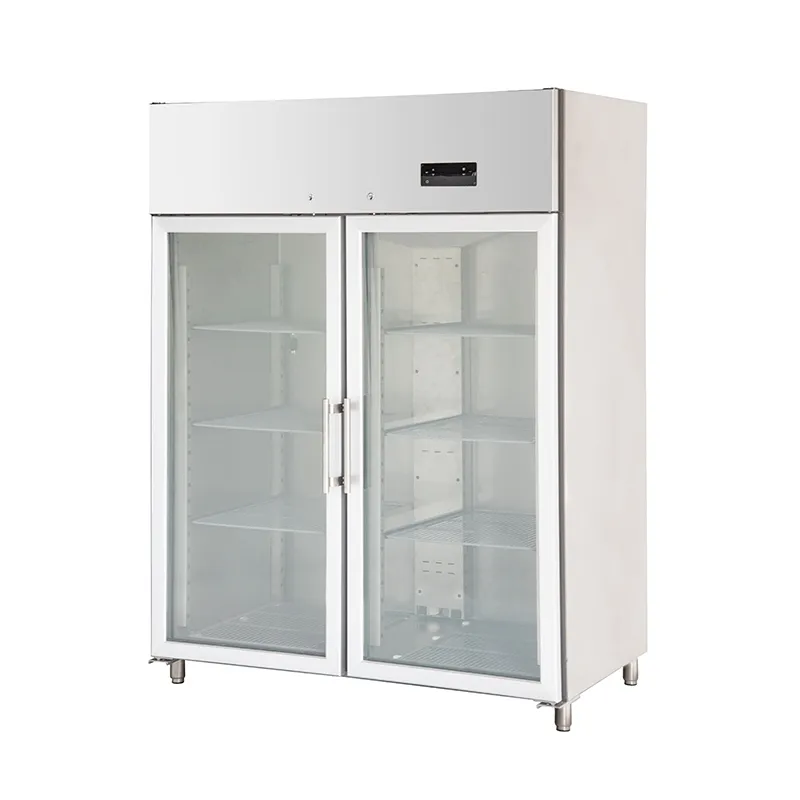

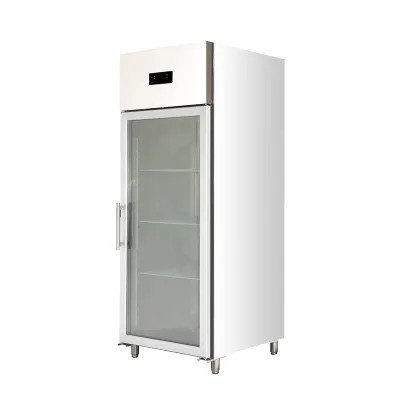

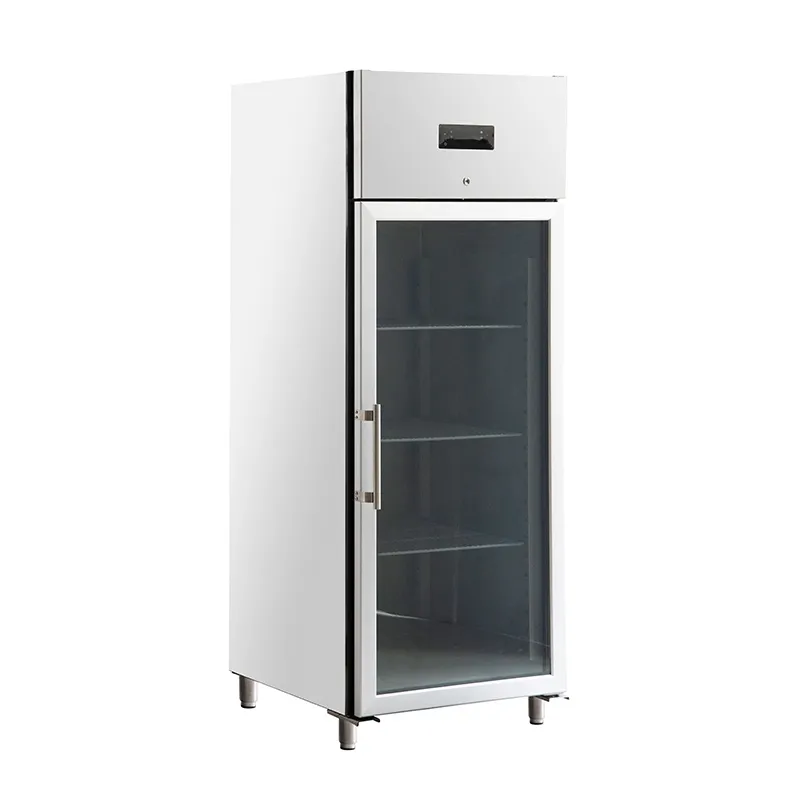

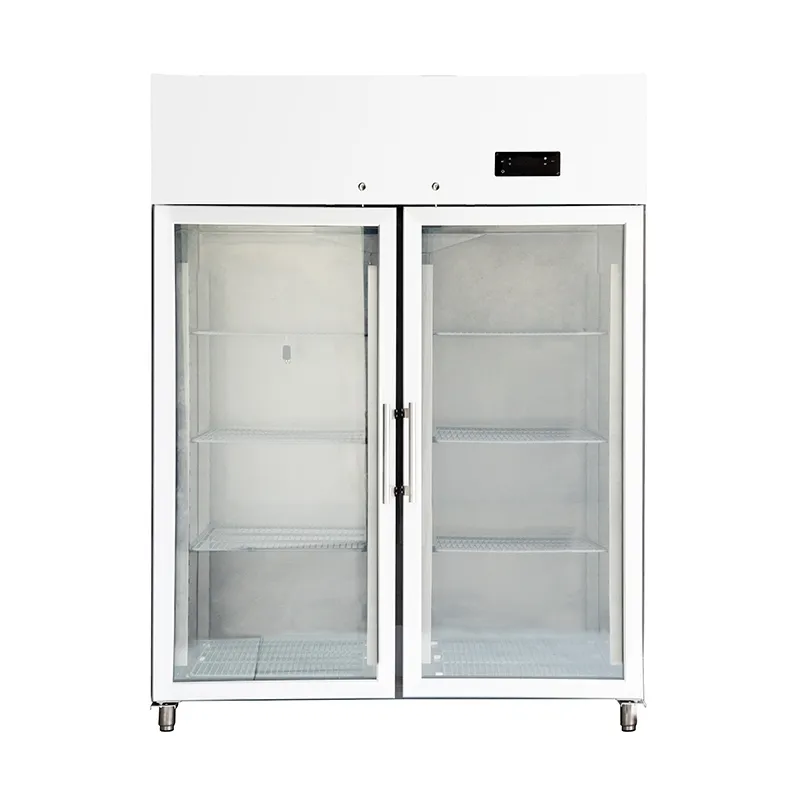

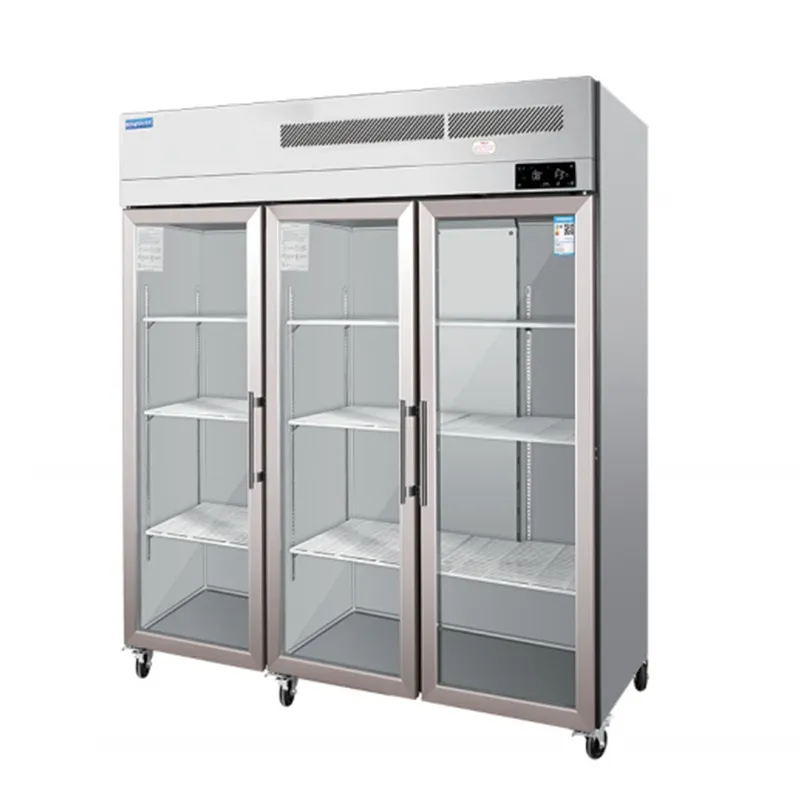

Glass Door Display Merchandiser (Self-Service Glass Door Merchandiser)
American style glass door display merchandisers are designed for both refrigeration and freezing, with independent temperature control to keep flavors separate. Their large capacity, energy-efficient, and low-noise operation make it ideal for daily use in retail environments. They are equipped with frost-free fan cooling systems to help maintain freshness, while the clear panoramic design and adjustable shelves provide excellent product visibility and organization for various business needs.
American style commercial refrigeration and freezer display merchandisers are ideal for supermarkets, convenience stores, and delis. Thanks to their dual-temperature control and clear visibility through their transparent design, their ensures freshness while boosting product turnover and sales efficiency in various retail environments.

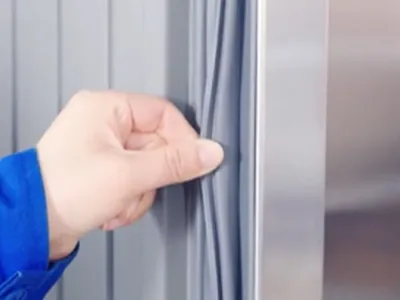

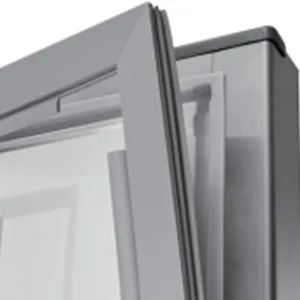

TEP door seal
Maintains shape in low temperatures, prevents air leakage, removable for easy cleaning

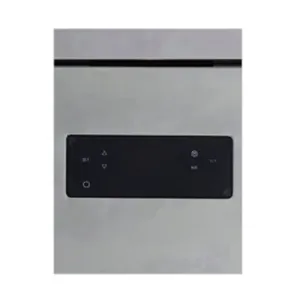

Precise temperature control + Wi-Fi connectivity
User-friendly digital display with clear status and convenient operation

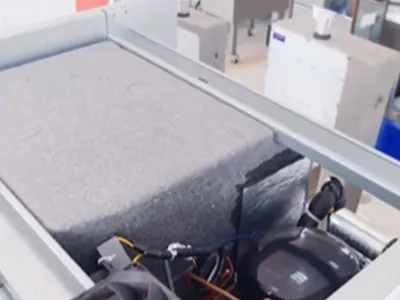

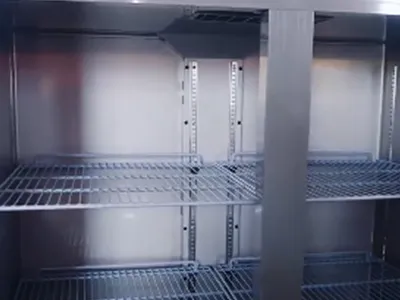

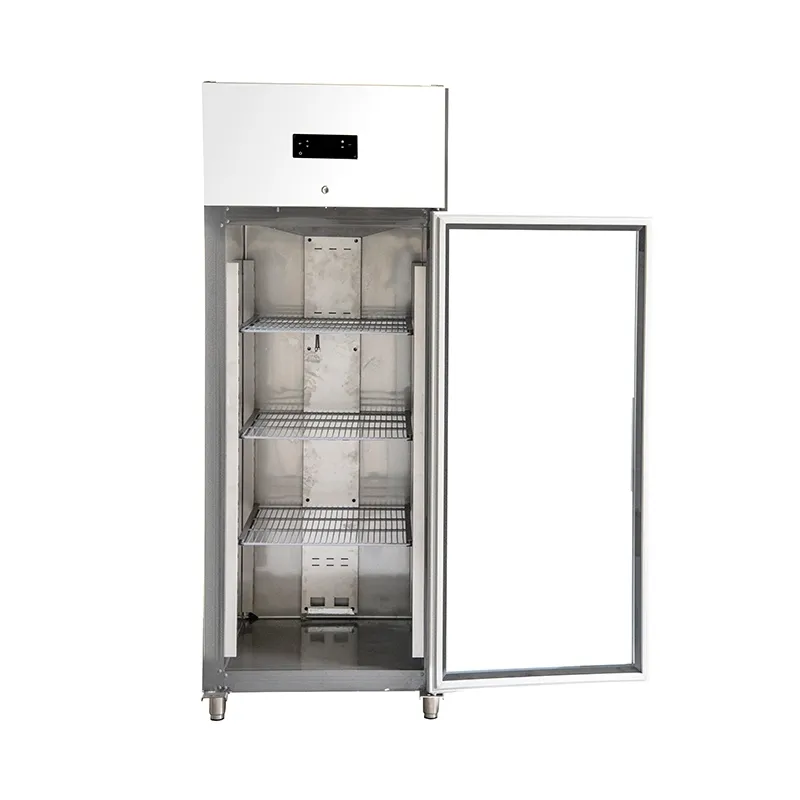

Space-saving interior
No evaporator components inside, allowing for more storage space

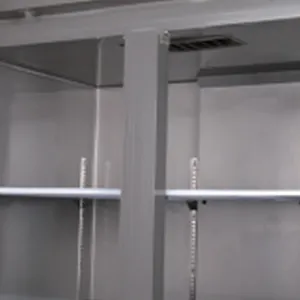

Bottom intake, top exhaust airflow
Features bottom intake for air and multi-directional exhaust to quickly dissipate heat
| Model | ||||||
| Classification | Freezer | Refrigerator | Freezer | Refrigerator | Freezer | Refrigerator |
| Dimensions (W×D×H) | 501.5×850×2120mm 19.7”×32.4”×83” | 686×850×2120mm 19.7”×32.4”×83” | 1003×850×2120mm 39.5”×32.4”×83” | |||
| Packing Size (W×D×H) | 542×890×2160mm 21.33”×35”×85” | 726×890×2160mm 28.5”×35”×85” | 1043×890×2160mm 41”×35”×85” | |||
| Capacity | 272L | 373L | 568L | |||
| Power Supply | 115V/60Hz/280W | 115V/60Hz/180W | 115V/60Hz/280W | 115V/60Hz/180W | 115V/60Hz/400W | 115V/60Hz/230W |
| Temperature | -17.8℃~23.3℃ (0℉~-10℉) | 0℃~10℃ (32℉~50℉) | -17.8℃~23.3℃ (0℉~-10℉) | 0℃~10℃ (32℉~50℉) | -17.8℃~23.3℃ (0℉~-10℉) | 0℃~10℃ (32℉~50℉) |
| Refrigerant | R290 | R290 | R290 | |||
| Compressor | Cubigel | Cubigel | Cubigel | |||
| Model | ||||
| Classification | Freezer | Refrigerator | Freezer | Refrigerator |
| Dimensions (W×D×H) | 1372×850×2120mm 39.5”×32.4”×83” | 2054.5×850×2120mm 81”×32.4”×83” | ||
| Packing Size (W×D×H) | 1412×890×2160mm 41”×35”×85” | 2094×890×2160mm 82.5”×35”×85” | ||
| Capacity | 582L | 1270L | ||
| Power Supply | 115V/60Hz/400W | 115V/60Hz/230W | 115V/60Hz/790W | 115V/60Hz/460W |
| Temperature | -17.8℃~23.3℃ (0℉~-10℉) | 0℃~10℃ (32℉~50℉) | -17.8℃~23.3℃ (0℉~-10℉) | 0℃~10℃ (32℉~50℉) |
| Refrigerant | R290 | R290 | ||
| Compressor | Cubigel | Cubigel | ||
