Dishwasher (Washing and Sanitizing)
The commercial dishwasher offers a quick and consistent dishwashing solution to keep tableware clean during peak service. It is designed for professional kitchens to handle daily washing and sanitizing tasks and reduce reliance on manual cleaning.

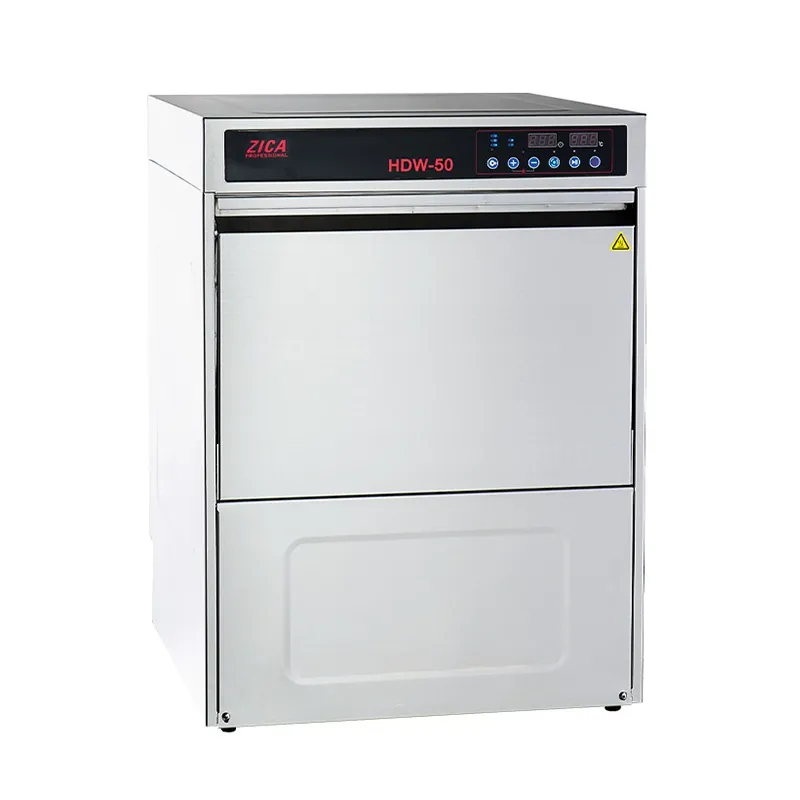

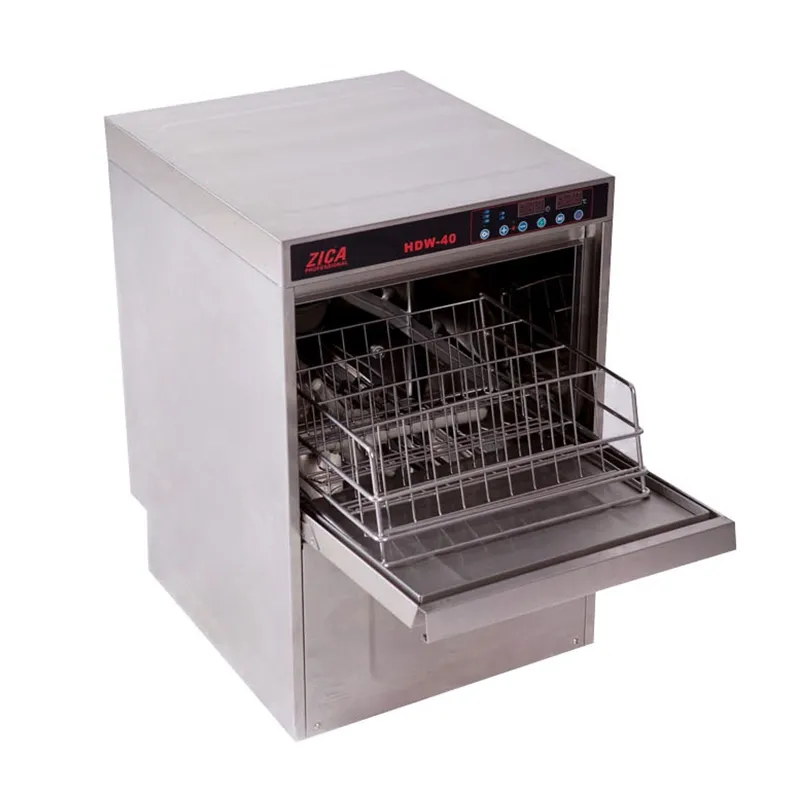

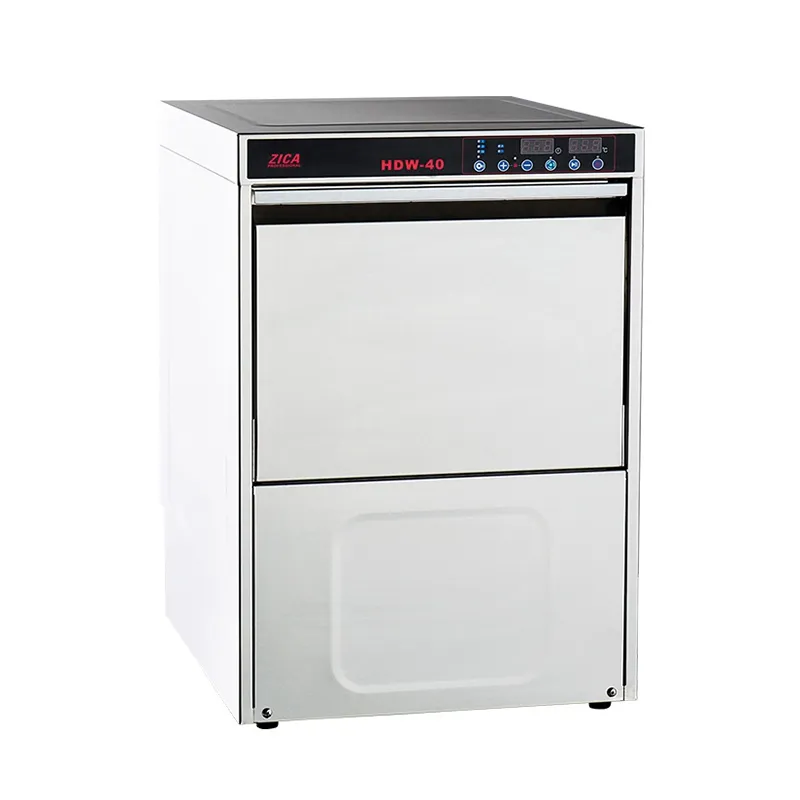

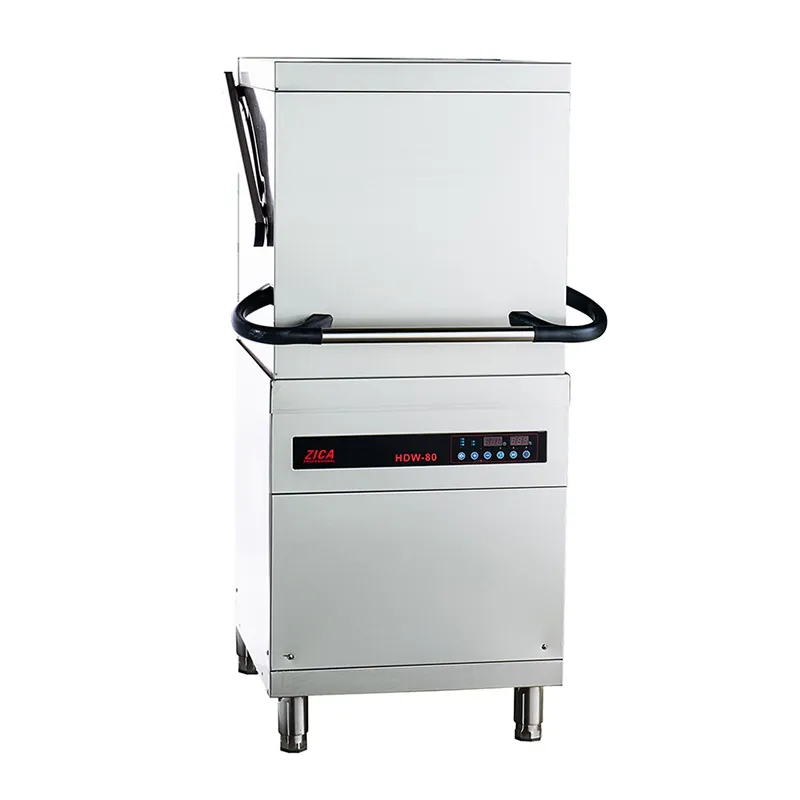

Our dishwashing models, HDW-40 to HDW-80, are suitable for operations ranging from small quick-service restaurants to large-scale catering facilities. A high-pressure spray system delivers 360° coverage inside the washing chamber, removing heavy grease efficiently and shortening wash cycles compared with manual cleaning methods. It is built from 304 stainless steel for corrosion resistance and easier daily maintenance. Residue buildup and drainage blockage are minimal as the dishwasher is equipped with an internal filtration system. Its simple control panel provides a one-touch user-friendly operation.
The cleaning capacity of our dishwashers reaches up to 400 pieces per hour, with a choice of three selectable washing cycles to match different levels of soiling and kitchen demands.
Suitable for restaurant kitchens, quick-service outlets, central kitchens, school canteens, factories, hospitals, and hotels. Back-of-house operations run smoothly with our dishwashers designed for batch washing and sanitizing of tableware and kitchen utensils.

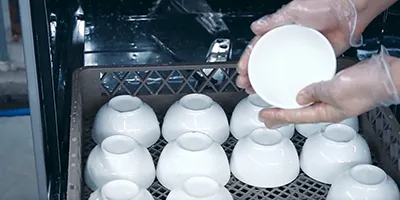

Loading dishes

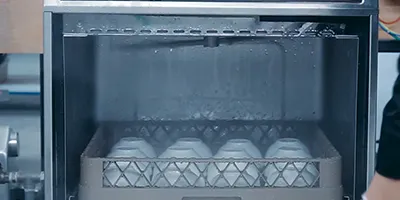

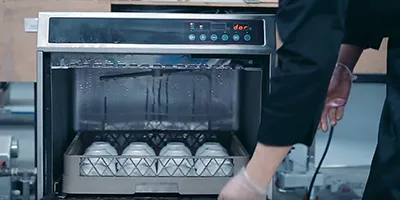

Washing in progress
Washed and sanitized dishes

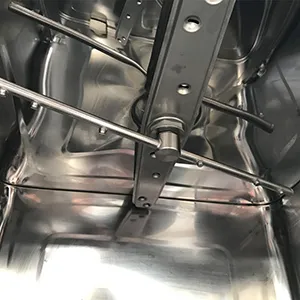

Spray arms

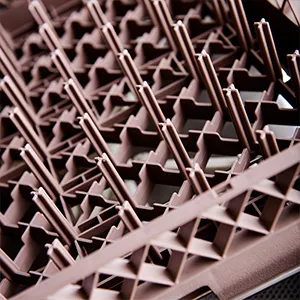

Dishwasher rack

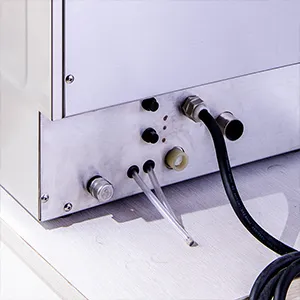

Water inlet connection
| Model | |||||||
| Dimensions (mm) | 600×610×820 | 600×610×850 | 650×700×950 | 600×610×900 | 476×550×720 | 800×820×1470 | 800×850×1470 |
| Packing Size (mm) | 690×700×980 | 690×700×1010 | 740×790×1010 | 690×700×1070 | 570×640×880 | 890×910×1630 | 890×910×1630 |
| Net Weight (kg) | 62.6 | 66.6 | / | / | 49 | 106 | 106 |
| Gross Weight (kg) | 82.6 | 88.6 | / | / | 63.2 | 147 | 147 |
| Entry Height | 300 | 300 | 300 | 300 | 300 | 430 | 430 |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power (kW) | 7 | 7 | 7 | 7 | 5.5 | 14.7 | 14.7 |
| Wash Temperature | 50~65℃ | 50~65℃ | 50~65℃ | 50~65℃ | 40~55℃ | 50~65℃ | 50~65℃ |
| Rinse Temperature | 65~80℃ | 65~80℃ | 65~80℃ | 65~80℃ | 55~80℃ | 65~85℃ | 65~85℃ |
| Cycle Time Options (s) | 90/120/150 | 90/120/150 | 90/120/150 | 90/120/150 | 120/150/180 | 60/90/120 | 60/90/120 |
| Wash Capacity (rack/h) | 30 | 30 | 30 | 30 | 30 | 60 | 60 |
| Inlet Water Temperature | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ |
| Water Consumption per Cycle (L/rack) | 2.5~3 | 2.5~3 | 2.5~3 | 2.5~3 | 2.5~3 | 2.5~3 | 2.5~3 |
| Water Pressure (bar) | 1.5~5 | 1.5~5 | 1.5~5 | 1.5~5 | 1.5~5 | 1.5~5 | 1.5~5 |
| Water Tank Capacity (L) | 20 | 20 | 20 | 20 | 20 | 24 | 24 |
| Boiler Capacity (L) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9.5 | 9.5 |
| Boiler Heating Power (kW) | 4.5 | 4.5 | 4.5 | 4.5 | 3 | 12 | 12 |
| Wash Tank Heating Power (kW) | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Wash Pump Power (kW) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
| Water Inlet | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 |
| Drain Outlet Diameter | Ø32 | Ø32 | Ø32 | Ø32 | Ø32 | Ø32 | Ø32 |
