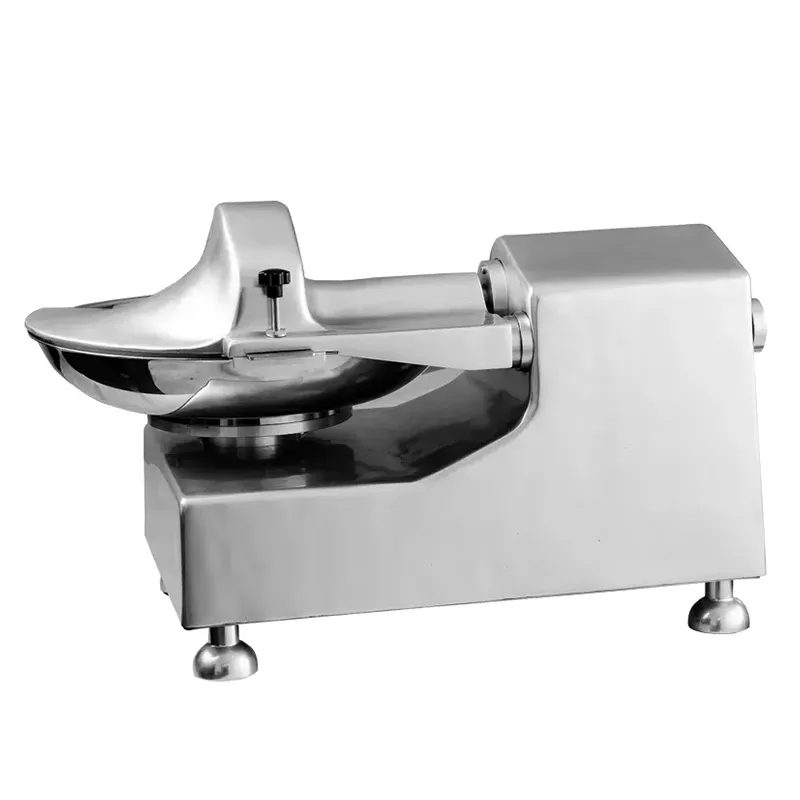

Cutting Mixer Machine (Horizontal Bowl Cutter)

Cutting Mixer Machine (Horizontal Bowl Cutter)

The cutting mixer machine is used for efficient chopping and mixing of food ingredients in professional kitchens and food processing environments. Kitchens benefit from the horizontal bowl cutters as they can handle daily prep tasks with consistent results and smooth operation.

This horizontal bowl cutter range includes HLQ-8 / HLQ-14 / HLQ-20 / HLQ-20L models, with a processing capacity of 4-10 kg and power options from 550 W to 1.5 kW. It is able to adapt to different batch sizes and production demands. The bowl rotation speed of 12-18 rpm is carefully controlled to provide a stable cutting force for various ingredients. The food-grade stainless steel body is suitable for humid back-of-house environments and is easy to clean after use. The blade assembly closely follows the bowl contour, ensuring even chopping while helping ingredients retain their natural texture and freshness. Disassembly is very quick that simplifies the cleaning process with minimal manual labor.

Leave a Message
Applications

Ideal for restaurant kitchens, meat processing plants, food processing factories, and central kitchens. It is used for efficient filling preparation and fine chopping and mixing of ingredients. It processes raw material for products such as dumplings, meatballs, and sausages.

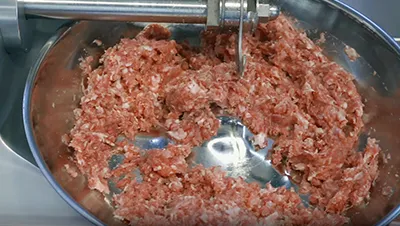

  • Meat cutting Meat cutting

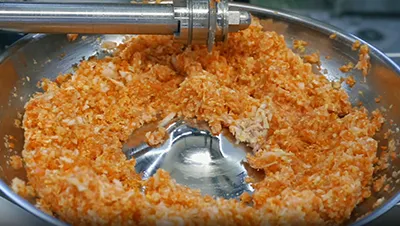

  • Vegetable cutting Vegetable cutting
Product Details
  • Main body and control assembly Main body and control assembly

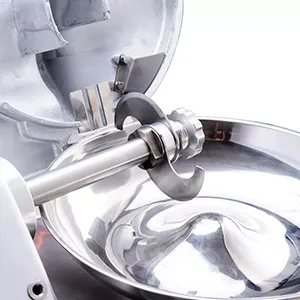

  • Cutting blades Cutting blades

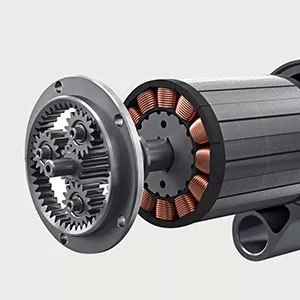

  • High-power motor High-power motor

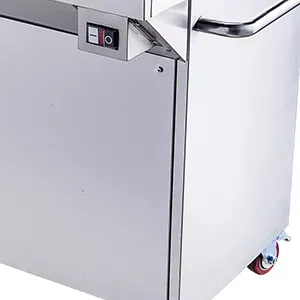

  • Power switch Power switch
Specifications
Model HLQ-8 HLQ-14 HLQ-20 HLQ-20L
Voltage 230/110V 230/110V 110/230/380V 230/380V
Power 550W 750W 1.5kW 1.5kW
Motor Speed 1450 rpm 1450 rpm 1440 rpm 1440 rpm
Knife Speed 1450 rpm 1450 rpm 1440 rpm 1440 rpm
Bowl Speed 18 rpm 17 rpm 12 rpm 12 rpm
Bowl Diameter 385mm 460mm 635mm 635mm
Max. Batch Capacity 4kg 7kg 10kg 10kg
Min. Batch Capacity 1kg 2kg 5kg 5kg
Net Weight 39kg 50kg 132.4kg 128.2kg
Gross Weight 41.8kg 65.5kg 162.2kg 157kg
Dimensions 680×441×385mm 760×515×452mm 899×707×926mm 907×699×1025mm
Packing Size 756×500×465mm 853×603×601mm 1050×810×1085mm 804×1031×1185mm
Since 1996, Hualing has been an OEM/ODM manufacturer specializing in commercial kitchen and food processing equipment for global markets. Our facility integrates Swiss laser-cutting systems, Italian CNC punching machines, and HAAS machining centers to ensure precise processing and consistent manufacturing quality. Our commercial kitchen equipment complies with CE, ETL, CB, GS, and RoHS requirements.
